Custom LCD Modules
|
Please complete the form below to request a quote for a custom LCD module. |
A Liquid Crystal Module (LCM) usually consists of a Liquid Crystal Display (LCD), printed circuit board (PCB), backlight, and interface circuitry. We can also apply an anti-reflective layer to the front glass to minimize reflections.

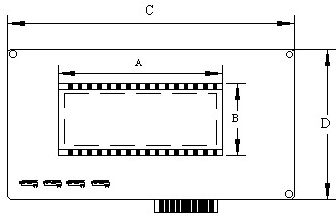

A drawing is usually supplied by the customer with a request for quote, however, this is not always necessary. Please refer to the drawing below, which shows relevant information needed.
-
The size of the PCB width and height (C and D).
-
The size of the LCD glass width and height (A and B).
-
The layout of the LCD digits and annunciators or pixel array count if a graphics display (i.e. 640 x 480).
-
The operating temperature range.
-
The type of interface (i.e. parallel, serial, USB, etc.).
Additional options include the following:
- Type of Backlight: LED, CCFL, or Electroluminescent
- Front Glass Coating: Anti-reflective or anti-glare
- Standard or custom connector with flat cable
- Temperature compensation circuitry
Please use the information above to fill-in the blanks below. All of the fields are optional, but please provide us enough information to contact you.
|
|
